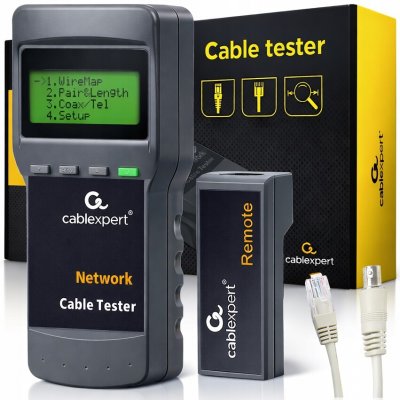

Gembird Zkoušečka kabelů Digital network cable tester RJ45 (Cat 5E, 6E, coaxial, telephone)

Popis produktu:
Packaging

Indicates wiring problems in Cat 5E, 6E, coaxial and telephone cables: open circuit, short circuit, jumper wire, reverse connection
Measures the cable length and determines the distance to the open circuit
The length measurement accuracy up to 97% via built-in calibration
Self-checks and automatically compensates any change in battery capacity or ambient temperature
Up to 50 working hours of the battery life

Specifikace
Power supply: 4 x 1.5 V DC AA batteries (not included)
Power consumption: up to 16 mA
Display: 4 x 16 character LCD screen, 61.6 x 25.2 mm
Designed for: STP/UTP twin twisted, coaxial & telephone cable
Working ambient temperature: -10 ... + 60°C
Tester port: tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
Max cable length: up to 1350 m
Calibration accuracy: 3% (+/- 0.5 m)
Calibration cable length: > 5 m
Cable problems detected: open circuit, short circuit, reverse connection, crossover or cross-talk interference
Automatic shut-down: after 30 minutes
Dimensions: 180 x 80 x 40 mm
Net weight: 0.25 kg
